90 cm iQ700 surface range hood

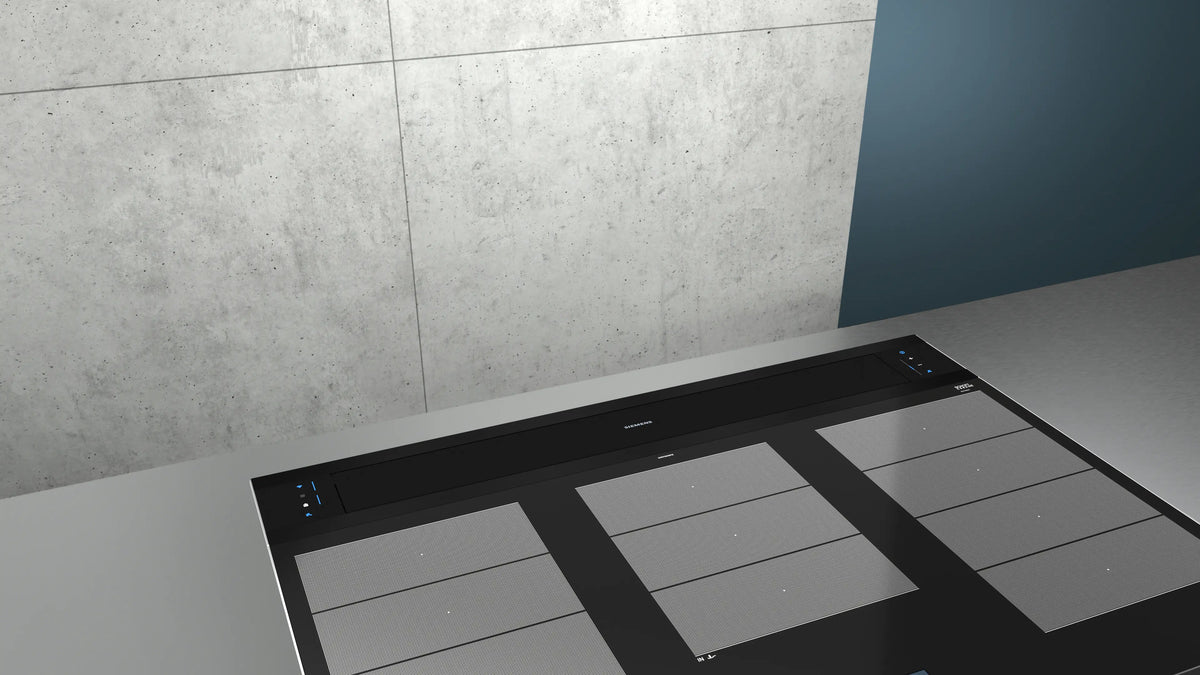

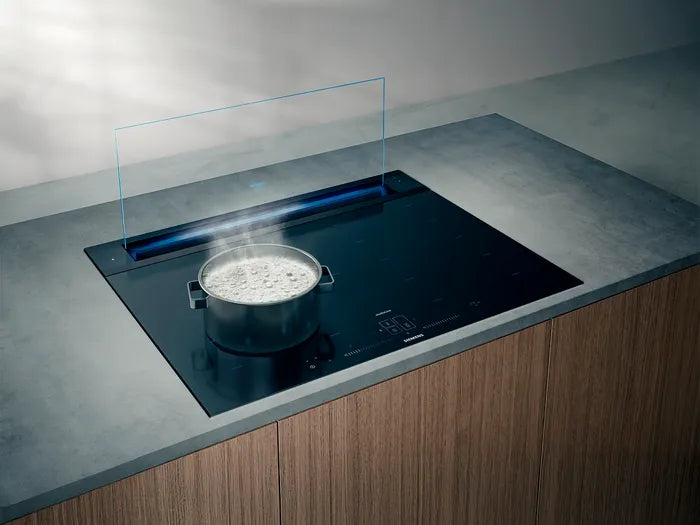

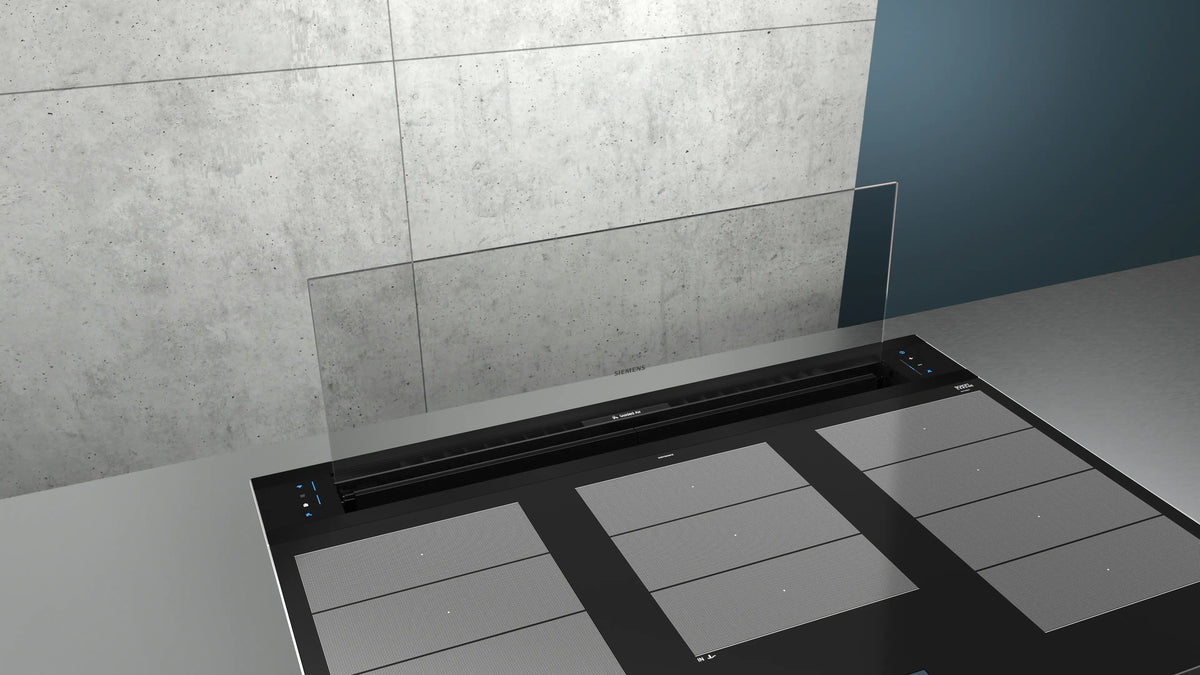

The Siemens iQ700 LD98WMM60 is a 90 cm telescopic countertop extractor hood, specially designed for islands and peninsulas. When not in use, it remains integrated into the countertop and, during cooking, rises to perform extraction. It can be installed with air vented outside or in recirculation mode, using the appropriate accessories. It features 5 extraction levels, an automatic function with an air quality sensor, Guided Air technology, control from a compatible cooktop, and Home Connect connectivity.

Dimensions and installation

The appliance is designed to be integrated into 90 cm cabinets.

• Appliance dimensions: 709 × 912 × 140 mm —height, width and depth—.
• Cut-out dimensions: 703 × 854 × 123 mm.
• Net weight: 39.7 kg.
• Air outlet diameter: 150 mm.
• Cable length: 1.30 m.
• Installation type: built-in.

The technical drawings on pages 3 and 4 show different integration options, both with a standard countertop and flush-mount installation, as well as the distances required for ventilation, ductwork, and motor placement.

An important point is that it cannot be combined with gas cooktops.

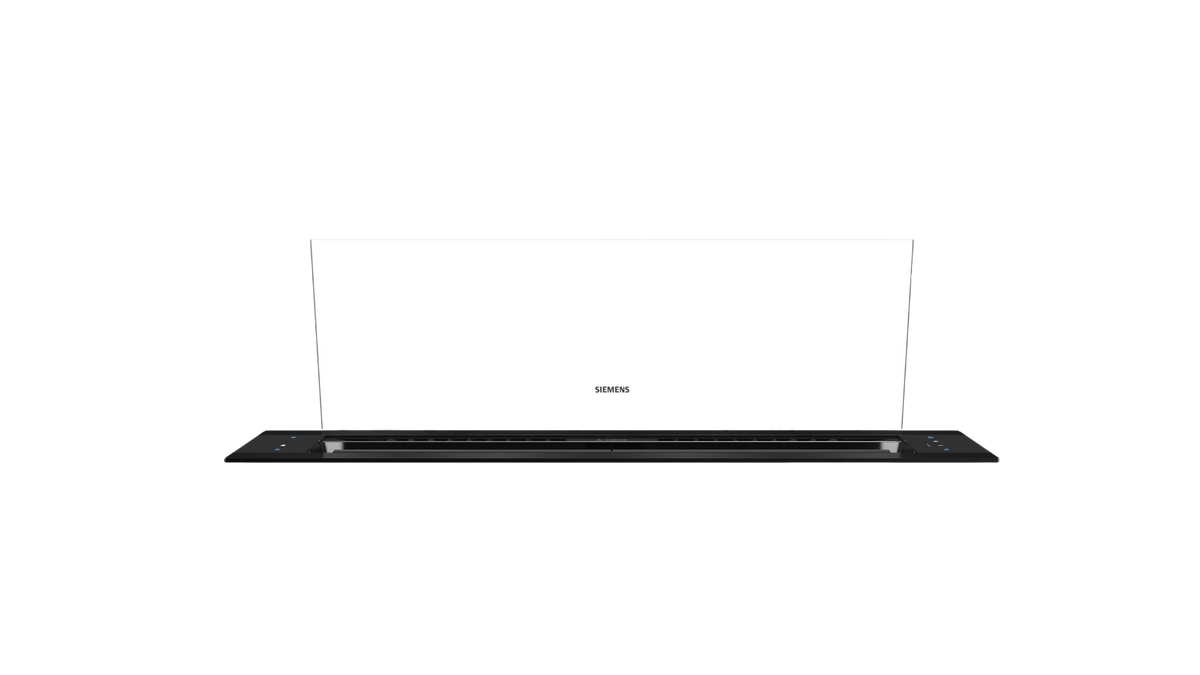

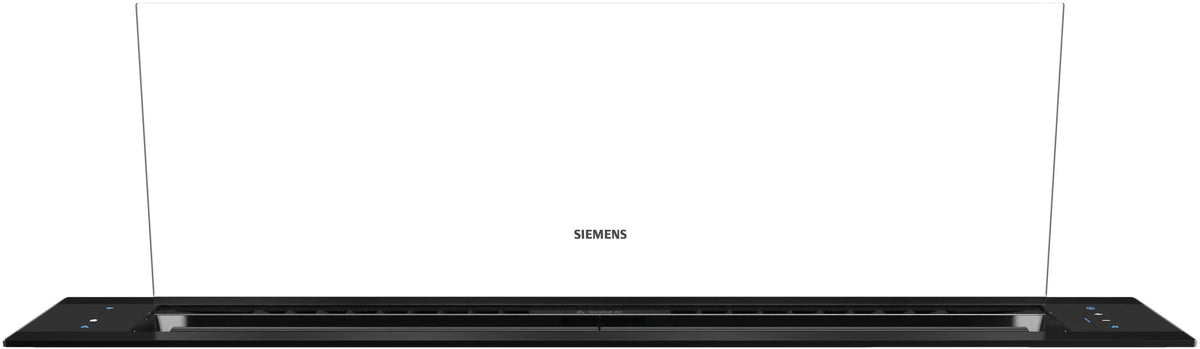

Finish and design

This model combines clear glass and a black finish.

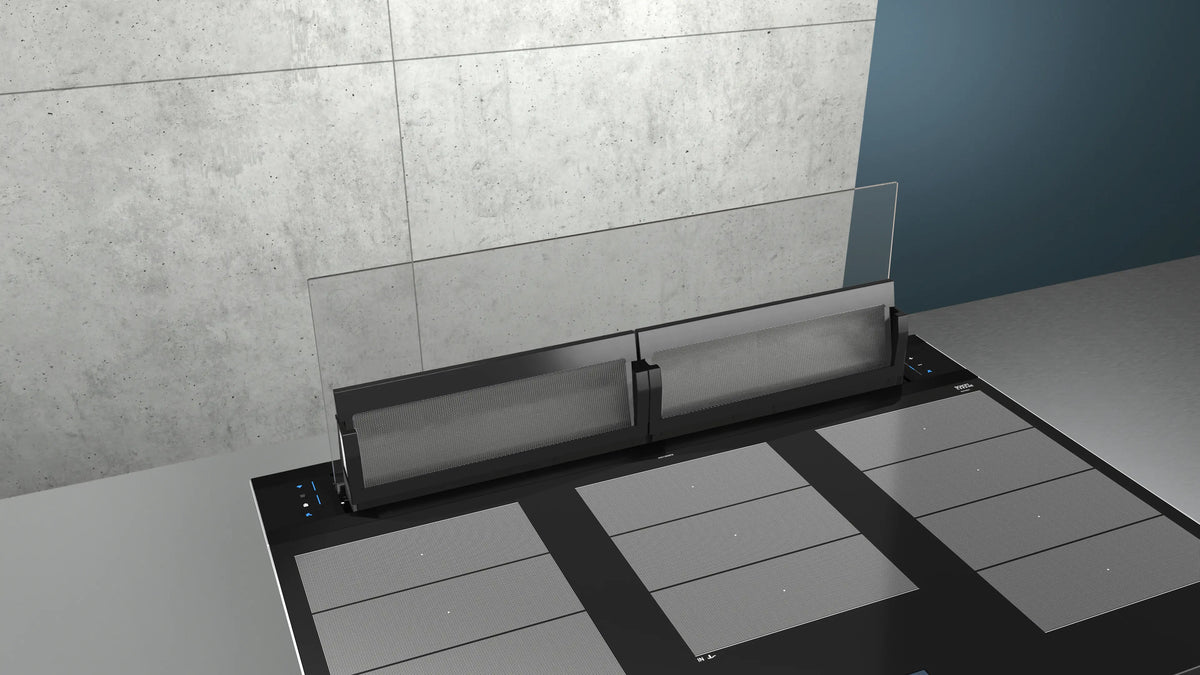

The telescopic element incorporates completely removable borosilicate glass, making it easy to clean. The provided documentation does not indicate any other finish options for this model.

Extraction type

The system allows two configurations:

• Air vented outside.
• Recirculation, using a specific set available as an accessory.

This allows the extractor hood to be adapted to the technical conditions of each kitchen. Siemens offers different components for configuring ducts, elbows, adapters, and filtration systems.

Power and extraction levels

It features 5 extraction power levels: 3 normal levels and 2 intensive levels.

According to the documentation:

• Maximum normal level: 519 m³/h.
• Intensive level: up to 833 m³/h.
• Recirculation in normal operation: up to 456 m³/h.
• Recirculation in intensive mode: up to 596 m³/h.

The intensive power level features automatic shut-off; Siemens indicates that intensive mode automatically switches off after 6 minutes.

Guided Air and automatic operation

The Guided Air technology is designed to facilitate effective extraction from the different cooking zones.

The appliance also incorporates the Auto Function, which uses an air quality sensor to automatically adjust the extractor hood's operation based on the conditions detected during cooking.

Control and connectivity

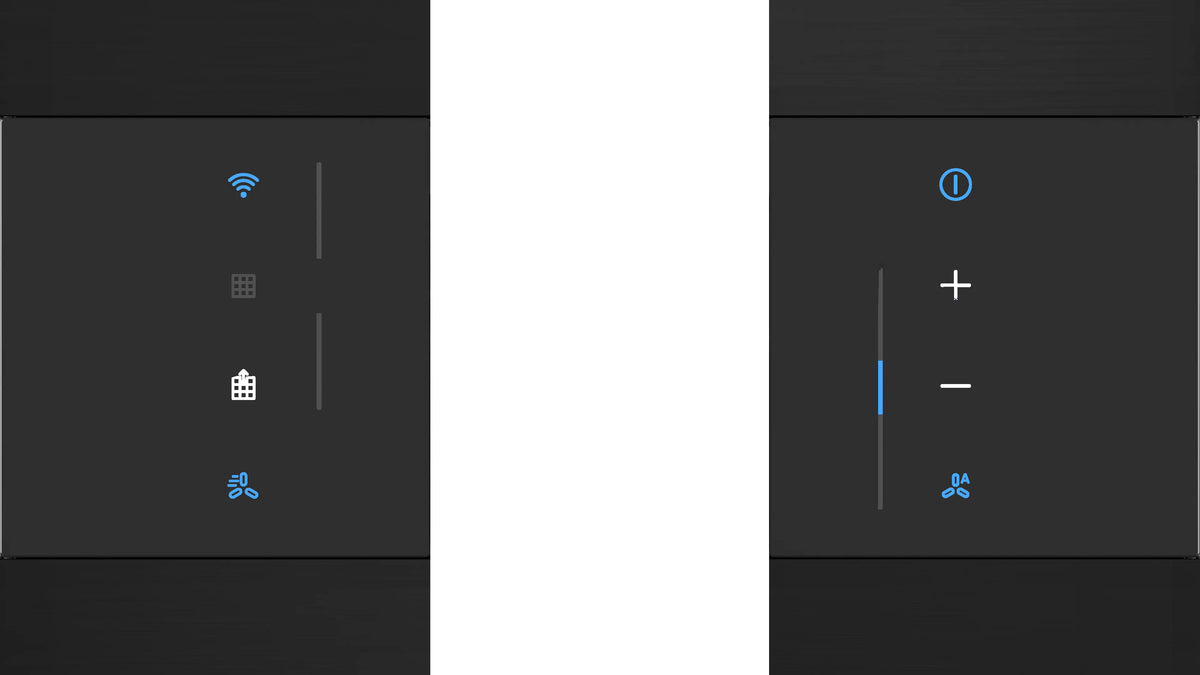

The appliance features touchControl, integrated into the extractor hood itself.

It also offers:

• Cooktop-hood control via cookConnect, with a compatible cooktop.
• Home Connect for certain functions from a mobile device.
• Voice control via compatible assistants and Home Connect.
• Interval operation.
• Silent function via Home Connect.
• Timed automatic shut-off.

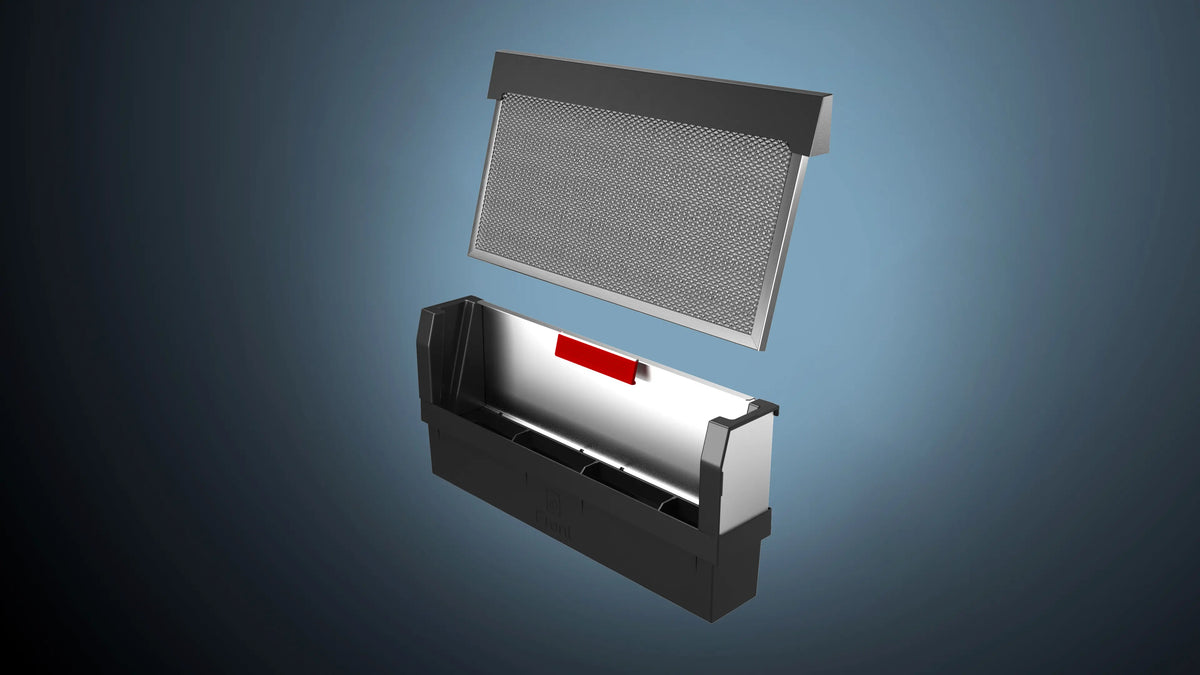

Filtration and maintenance

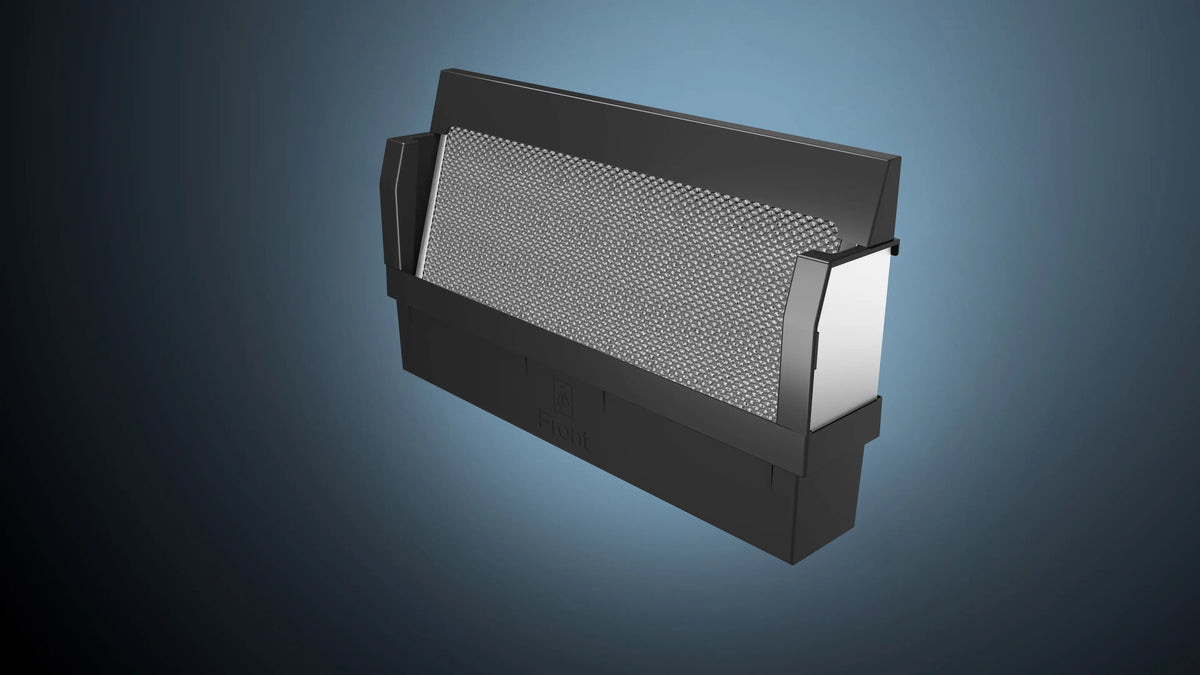

The extractor hood incorporates dishwasher-safe multi-layer aluminum filters.

It also features:

• Electronic grease filter saturation indicator.
• Activated carbon filter saturation indicator.
• Service position for easy access to the filters.
• Removable borosilicate glass for easy cleaning.

Motor and noise level

The appliance incorporates an iQdrive motor, with a 10-year warranty according to the technical data sheet.

At level 3, the documentation indicates:

• Extraction power: 519 m³/h.
• Sound power: 62 dB(A).

Energy efficiency

The model has an energy efficiency class of A, within the A+++ to D scale used in the product documentation.

Accessories and configuration options

This model offers a wide variety of accessories to adapt the installation. Some examples include:

• LZ21WWI17: high-efficiency anti-pollen recirculation set.
• LZ21WWJ12: regenerative recirculation set.
• LZ21WWM11: set for external motor mounting.
• LZ29WWY12: flush-mount installation kit.
• LZ21WWB16: replacement high-efficiency anti-pollen filter.
• Adapters, elbows, connectors, and flat or cylindrical ducts for configuring air exhaust.

There are more accessories available to adapt the ducts and installation to the specific requirements of the project.
