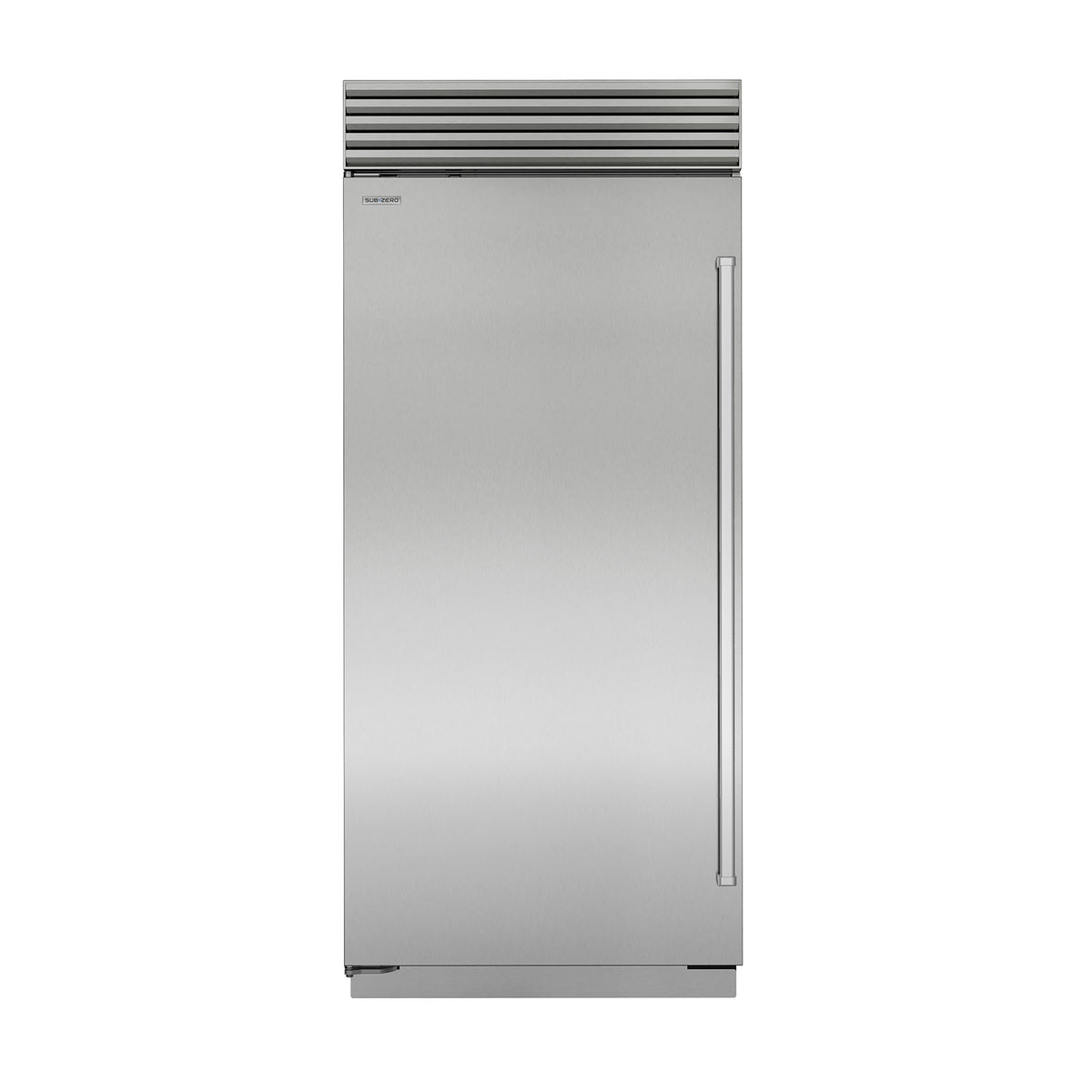

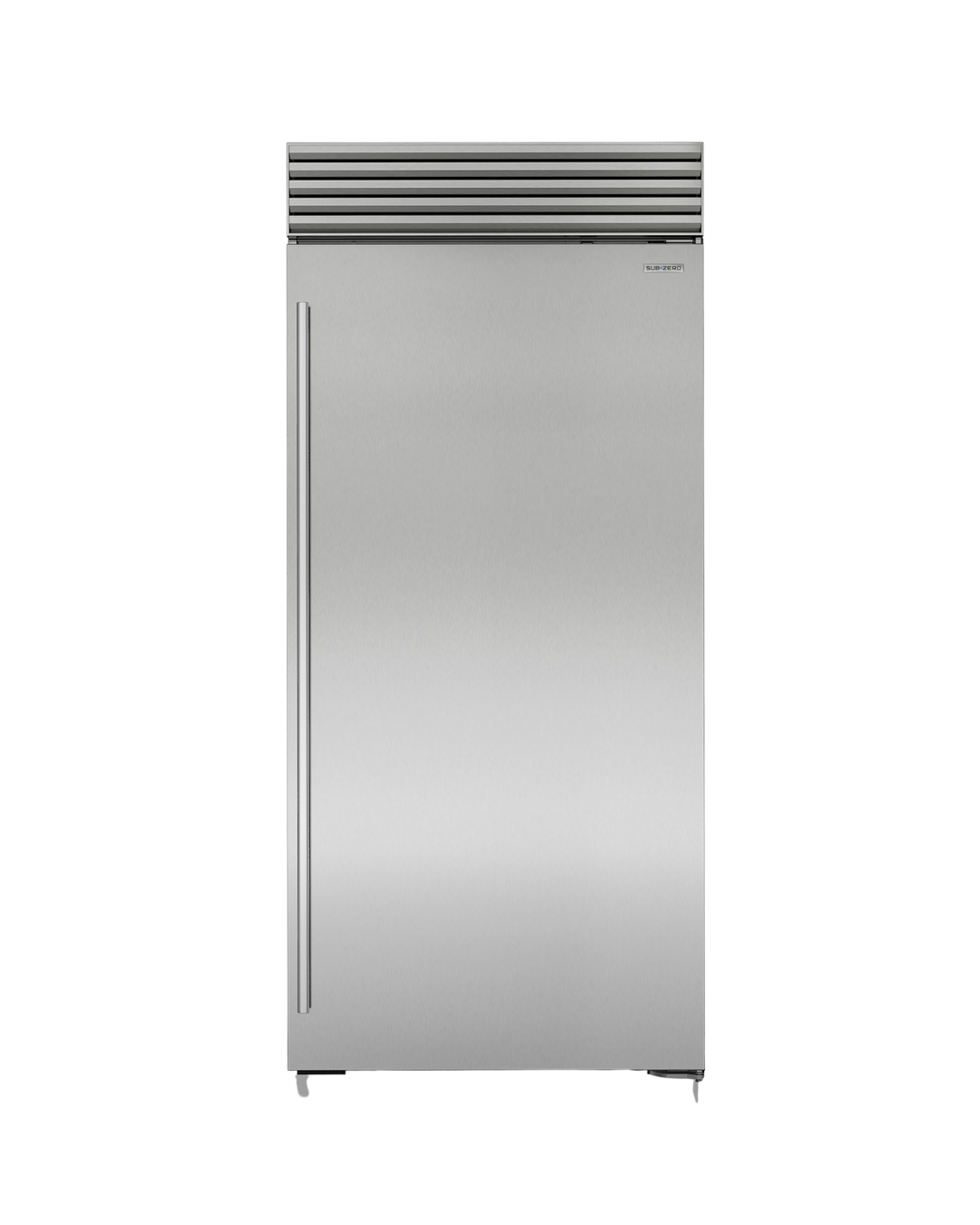

Classic 91 cm Freezer

The Sub-Zero ICBCL3650F/S is a Classic freezer that is 91.4 cm wide and has a net capacity of 582 liters, with a stainless steel exterior finish. It features ClearSight™ interior lighting, an automatic ice maker with water filtration, a touch control panel, and various configuration options using accessories and handles. It can be combined with other equipment in the range using dual installation kits.

Dimensions and installation

The dimensions provided for the appliance are:

• Width: 914 mm.
• Height: 2134 mm.
• Depth: 610 mm.
• Weight: 206 kg.
• Power supply: 220-240 V AC, 50/60 Hz.
• Electrical service: ≤ 4 A.

The technical documentation on page 2 includes dimensioned drawings and the dimensions required to plan the cabinetry and door opening. Sub-Zero recommends checking these specifications before finalizing the cabinetry or installation opening.

Finish and design

This version features a stainless steel exterior and stainless steel interior details.

The manufacturer offers two handle styles to coordinate the freezer with the rest of the Sub-Zero and Wolf appliances:

• Pro Handle.
• Tubular Handle.

This option allows the appliance's appearance to be partially adapted to the design of the project.

Capacity and interior organization

The Sub-Zero website indicates a net freezing capacity of 582 liters.

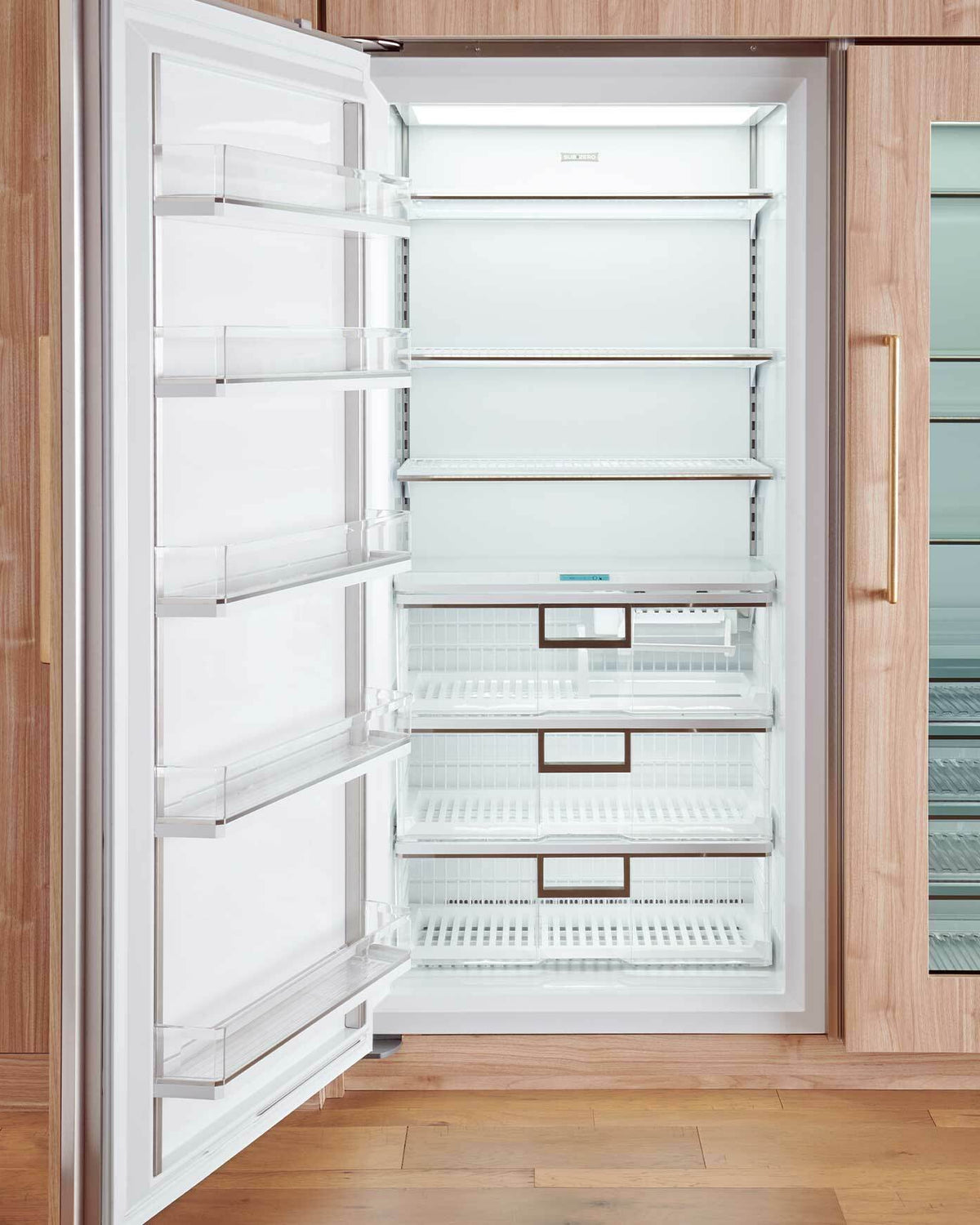

The interior includes:

• 4 stainless steel shelves, 3 adjustable and 1 fixed.
• 3 storage drawers with adjustable dividers.
• 5 height-adjustable door balconies.
• Removable ice bin with hinged handle.

The ability to change the position of shelves and balconies allows the interior to be organized according to the size of the stored food.

ClearSight™ lighting

The ClearSight™ LED system is designed to fully illuminate the interior and reduce shadows, providing light both at the top and underneath the shelves.

It also features Night Mode, which adapts the lighting to the detected ambient light and reduces its intensity by 90% when the surroundings are dimly lit.

Ice production

The freezer features an automatic ice maker and water filtration system.

The ice bin is removable and has a handle for easy transport. It also features Max Ice Mode, which temporarily increases ice production.

Control

The main functions are managed from a touch control panel, located in an accessible position.

The manufacturer's website indicates that various appliance settings, including lighting, can be customized from this panel.

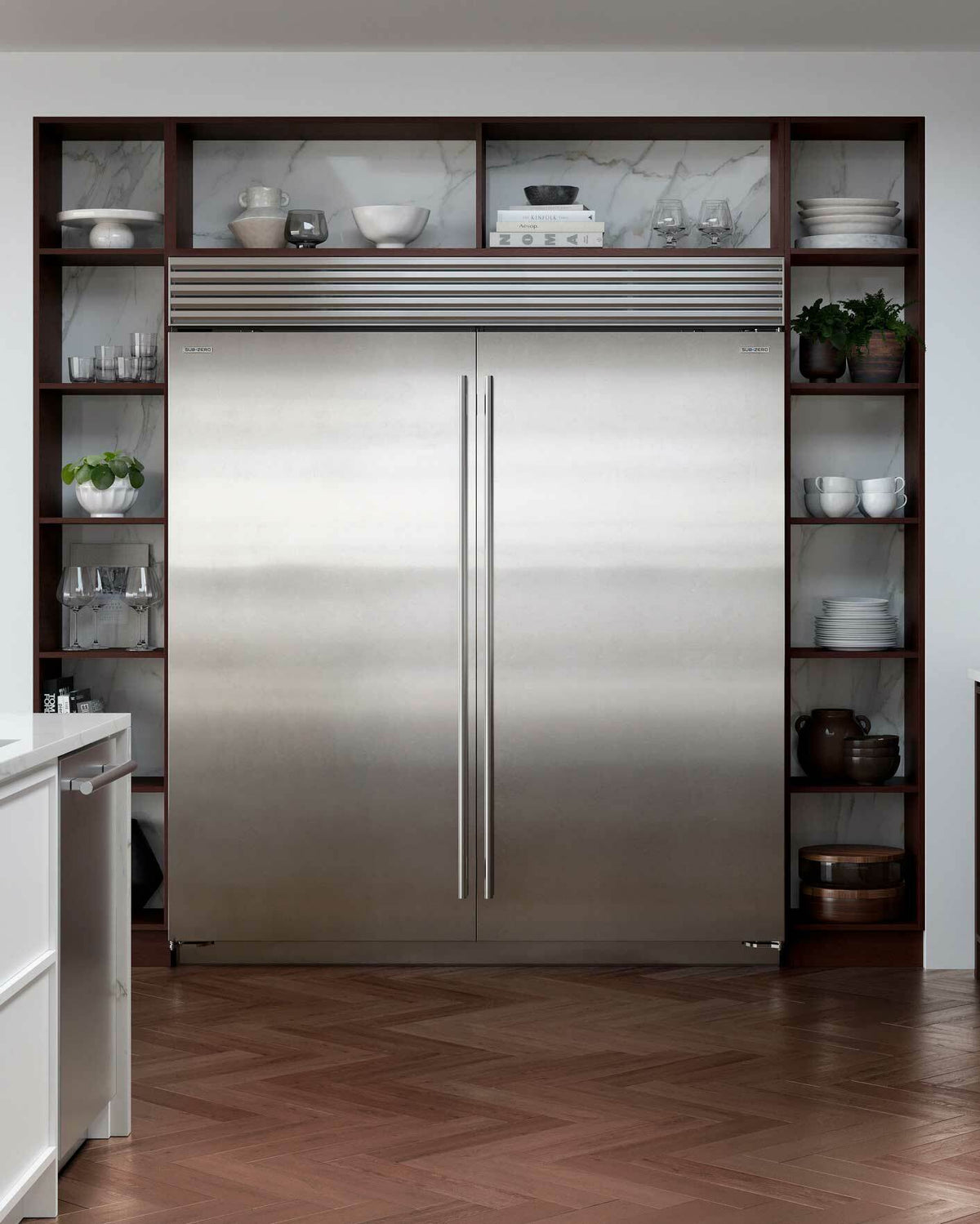

Configuration and combined installation

One of the main customization options for the model is its integration with other appliances in the Classic range.

Sub-Zero offers various dual installation kits to configure two appliances together. These include:

• Classic Dual Installation Kit.
• Dual kit with 66" Pro grille.
• Dual kit with 72" Pro grille.
• Dual kit with or without extra-wide double grille for a finished height of 2134 mm.

Grilles are also available for finished heights of 2108 mm or 2235 mm, with 2134 mm being the standard height indicated in the documentation.

Accessories and options

The documentation lists more than ten accessories and options. Some examples are:

• Air purification cartridge.
• Replacement water filter.
• Stainless steel toe kick.
• Side panel mounting kit.
• Various dual installation kits.
• Grilles for different installation heights.
• Egg tray.

More accessories are available through authorized distributors.

Warranty

The technical data sheet indicates a full two-year warranty for the appliance and a full five-year warranty for the sealed system.

The Spanish website, meanwhile, presents general brand warranty information; for the conditions specifically applicable to this model and the Spanish market, it is advisable to confirm them at the time of purchase.

Purchase assistance

To select the type of handle, grilles, toe kick, and installation kits, or to plan a combined configuration with other Sub-Zero equipment, we recommend contacting our customer service department. We can help you review the configuration and dimensions before placing the order.

Remember that in the Downloads section of the product, you have access to the technical data sheet, where you will find the specifications and drawings required to plan the installation correctly.
