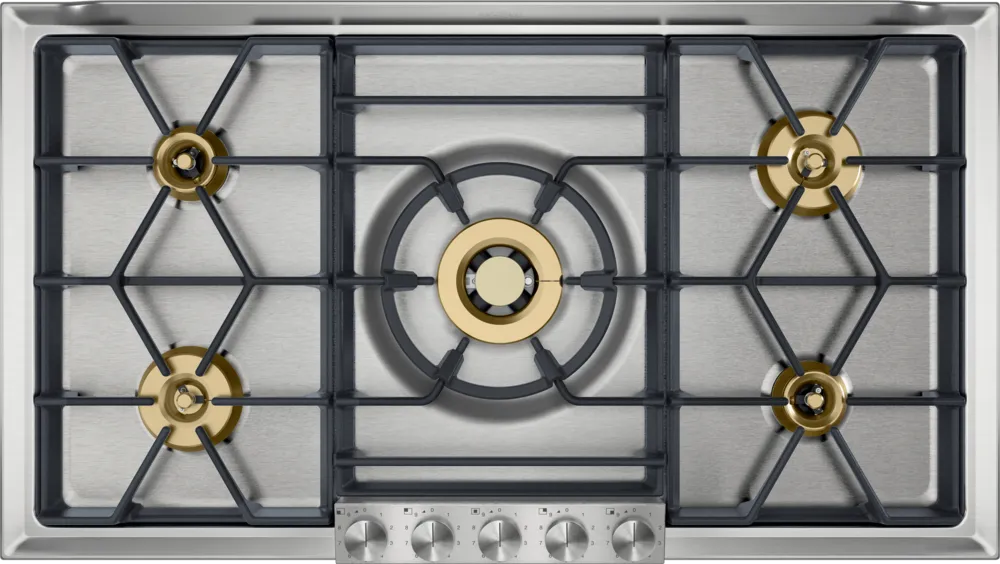

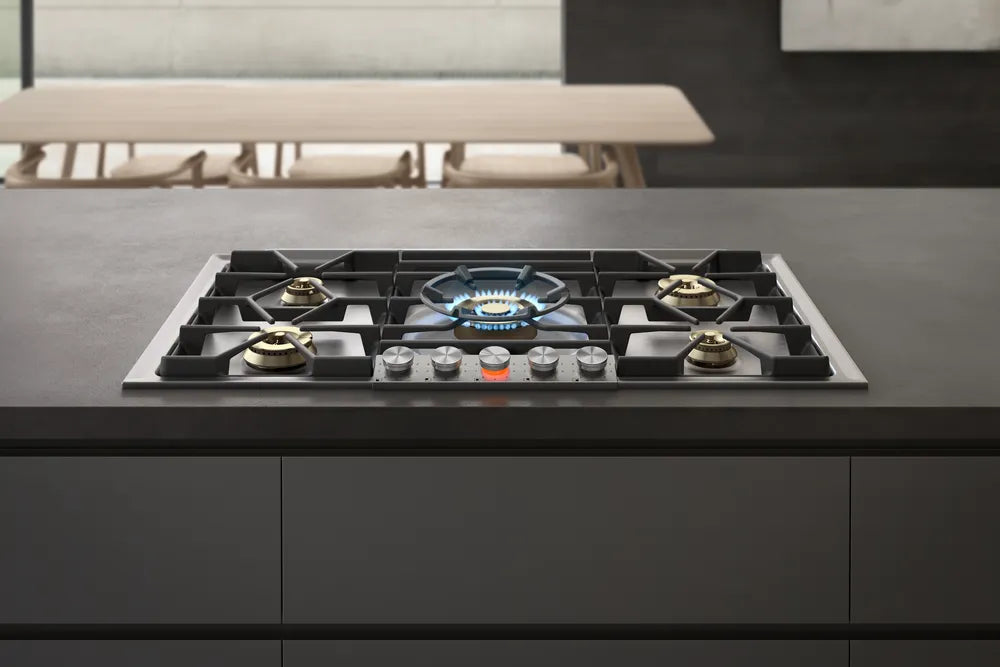

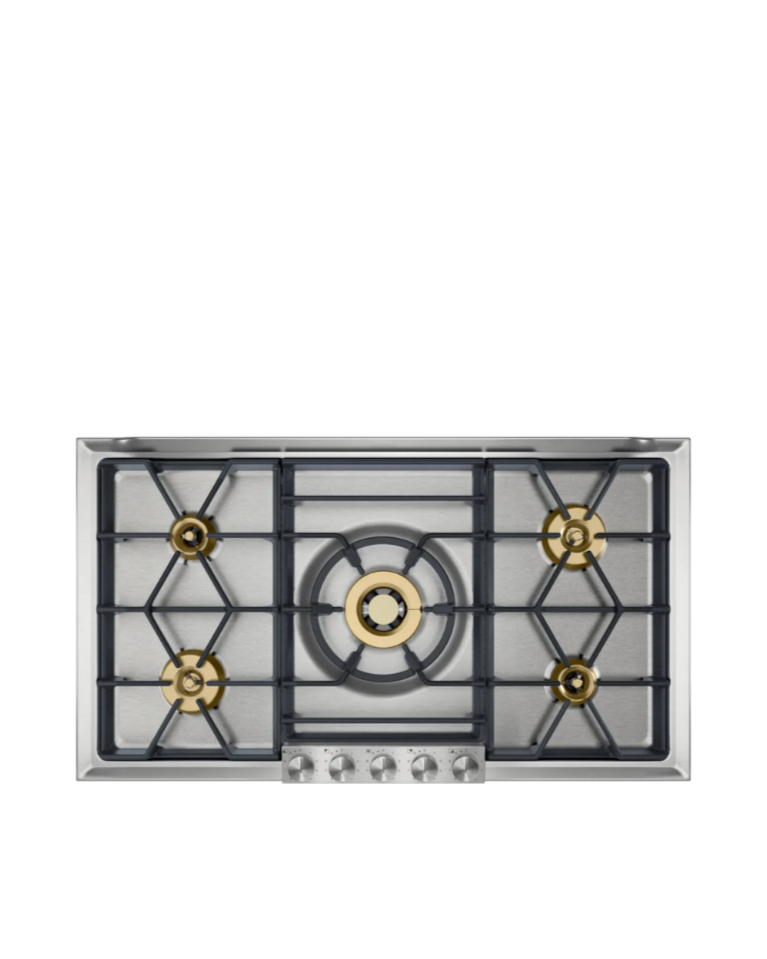

Gas hob 90 cm 200 Series, Butane gas 28-37 mbar

TheGaggenau gas hob, from the series200, is a90cm gas hobdesigned to offermaximum precision and powerin the kitchen. Equipped with asolid brass multi-ring wok burnerand a regulation of9 power levelsIt allows you to adjust the flame precisely to obtain the best results in the kitchen.

1. Dimensions and weight

•Broad:90 cm
•Installation in modules of:minimum 90 cm wide
•Minimum distance between worktop and extractor hood:70 cm
•Device weight:29 kg

2. Available materials and finishes

•Surface:High-strength stainless steel
•Grills:Cast iron with a flat, continuous surface, divided into three parts
•Burner rings:Solid brass

3. Cooking zones

•Amount:5 gas burners
•Multi-ring wok burner:(300 W – 5,800 W), for containers up to Ø 32 cm
•2 double ring burners:(170 W – 4,000 W), for containers up to Ø 28 cm
•2 double ring burners:(170 W – 2,000 W), for containers up to Ø 24 cm

4. Technology and control

•9-level mechanical power regulationwith precise adjustment and accurate reproduction of flame size
•Control buttons with light ring
•Integrated control panel
•Electronic ignition with one-handed operation

5. Security

•Thermoelectric safety device:Turn off the gas if the flame goes out accidentally.
•Residual heat indicator
•Performance indicator for each process

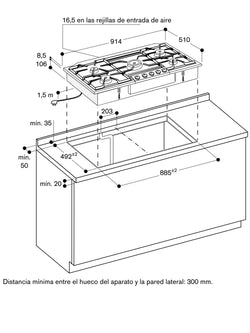

6. Installation and requirements

•Compatible gas type:Butane gas 28-37 mbar (can be adapted to natural gas 20 mbar with special nozzles)
•Gas connection power:17.8 kW
•Electrical connection power:10 W
•Connection cable:1.25 m with Schuko plug
•It does not require an intermediate panel for installation
•The back panel must be made of non-flammable material.
•The adjacent decorative elementsThey must be heat resistant
•If the connected power exceeds 11 kW,Ventilation and room size regulations must be met

7. Included and optional accessories

Included

• 1 Wok ring

Optional

• Wok pan designed for high-power burners

8. Personalization and purchase assistance

TheGaggenauIt is a powerful and versatile gas hob, ideal for professional kitchens and gastronomy enthusiasts.

For more information or advice on its installation and configuration, we invite you tocontact our team of professionalsYou can also consult the technical data sheets and manuals in the Downloads section of our website.
