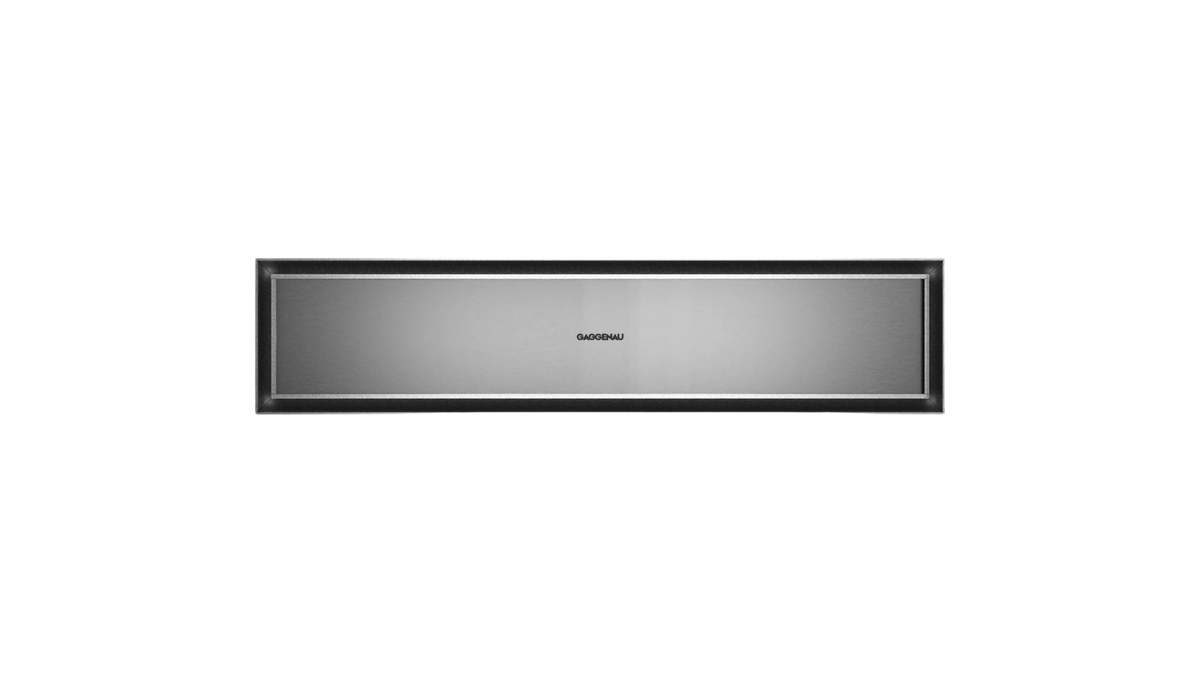

Vacuum packaging drawer 60x14 cm Series 400

HeGaggenau vacuum packing drawer, from the series400, it's a60cm vacuum packaging drawerdesigned forpreserve food for longer, marinate quickly, and prepare ingredients for sous vide cookingThis accessory is designed forto be installed below or above a Gaggenau ovencomplementing its functions and expanding the culinary possibilities in the kitchen.

1. Dimensions and capacity

•Broad:60 cm
•Height:14 cm
•Net volume:7 liters
•Maximum load capacity:10 kg

2. Available materials and finishes

•Packaging chamber:Stainless steel
•Deck:Safety glass with automatic opening

3. Features and applications

•3 levels of vacuum packaging in the chamber:Up to 99% vacuum
•3 levels of vacuum packaging outside the chamber:Up to 90% vacuum
•Automatic recognition for external packaging
•44 mm lifting platform
•Membrane to prevent the reflux of liquids
•Duct drying program
•Alert function

Applications:
• Vacuum packaging of food
• Quick marinade
• Packaging of liquids in bottles
• Packaging of containers outside the chamber

4. Control and management

•Touch control panel
•Soft-close system
•Maximum size of vacuum bags:240 mm x 350 mm
•Sealing bar with non-stick coating, removable
•3 levels of heat sealing for different types of bags

5. Installation and requirements

•Designed to be installed below or above a Gaggenau ovenoffering aesthetic and functional integration
•Requires installation in a 14 cm opening
•Plan for a minimum distance of 5 mm between the front of the appliance and the furniture.
•Compatible with BS/BM/CM ovens installed directly on the DV without an intermediate shelf
•Furniture panel thickness:Minimum 19 mm
•Furniture panel width:590-596 mm
•Recommended height of the furniture panel:142-156 mm
•Power absorbed:0.32 kW
•Connection cable:1.50 m with Schuko type plug

6. Personalization and purchase assistance

This product isdesigned to complement a Gaggenau ovenoffering innovative solutions for food preservation and sous-vide cooking.

For more information or advice on its installation and configuration, we invite you tocontact our team of professionalsYou can also consult the technical data sheets and manuals in the Downloads section of our website.
