Vario gas hob 38 cm Natural gas 20 mbar Series 400

TheGaggenau gas hob, from the seriesVario 400, is a38cm gas hobdesigned to offermaximum precision and performancein demanding kitchens. Thanks to itselectronic control with 12 power levelsIt allows for precise flame adjustment for different types of cooking.

1. Dimensions and weight

•Broad:38 cm
•Device weight:14 kg
•Facility:Countertop or flush mount

2. Available materials and finishes

•Surface:High-strength stainless steel (3 mm thick)
•Controls:Available in stainless steel or matte black
•Grills:Cast iron with a flat surface
•Burner rings:Solid brass

3. Cooking zones

•1 high-performance two-ring burner(165 W – 4,000 W), suitable for containers up to Ø 28 cm
•1 standard two-ring burner(165 W – 2,000 W), suitable for containers up to Ø 28 cm

4. Technology and control

• Fully electronic control with 12 power levels

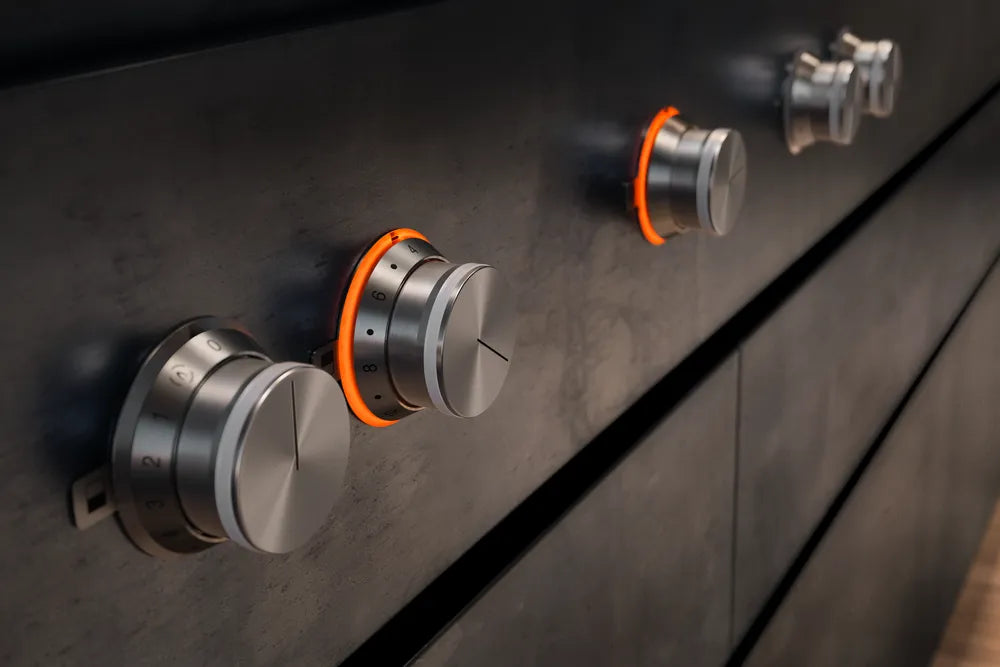

• Remote control with luminous ring and operating indicator
• Instant electronic ignition by turning the knob
• Simmering function with extremely low gas output (XLO)
• Continuous surface cast iron grates

5. Security

• Electronic flame monitoring with automatic re-ignition
• Residual heat indicator
• Automatic safety shut-off

6. Installation and requirements

•Compatible gas type:Butane gas 28-37 mbar
•Gas connection power:6 kW
•Electrical connection power:15 W
•Connection cable:1.25 m with Schuko plug
•Upper ventilation required
•It requires a separation of 150 mm from the furniture walls or thermal insulation.
•It does not require an intermediate panel for installation
•Countertops suitable for flush installation:Stone, synthetic or solid wood

7. Optional accessories

• Set of 2 black controllers
• Set of 2 stainless steel knobs
• Short joint for flush installation
• Short joint for countertop installation
• Vario 400 steel lid

8. Personalization and purchase assistance

TheGaggenauIt is a compact and powerful gas hob, ideal for integrating into modular kitchen configurations.

For more information or advice on its installation and configuration, we invite you tocontact our team of professionalsYou can also consult the technical data sheets and manuals in the Downloads section of our website.
